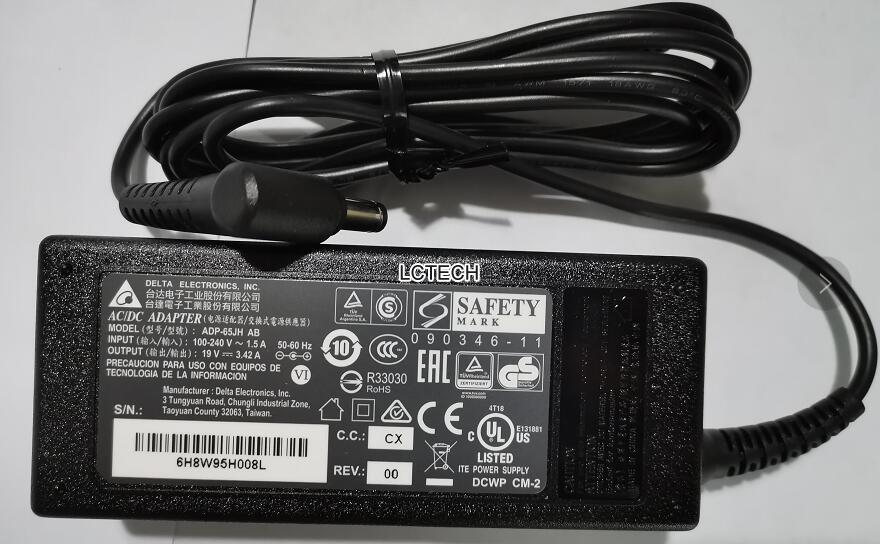

65W Delta台达 ADP-65JH

技术规格:

Input输入:

AC Socket 交流接口: C6 C8 八字尾 梅花尾

Input range输入电压范围:90Vac~264Vac

Frequency频率:47Hz~63Hz

Input current输入电流:1.5A Max at 100Vac input voltage

Efficiency效率:84% Min. at nominal input voltage, maximum load and measured at the end of DC cable


Output输出

Output Power输出功率:65W

Output Volts/Amps输出电压/电流:19.0V/3.42A

Output ripple and noise输出纹波:350 mV peak to peak

DC Plug输出接口: 按照客户项目需求提供


Dimensions尺寸 (mm)

L108.0 x W46.0 x H29.5

ADP-65JH AB3
