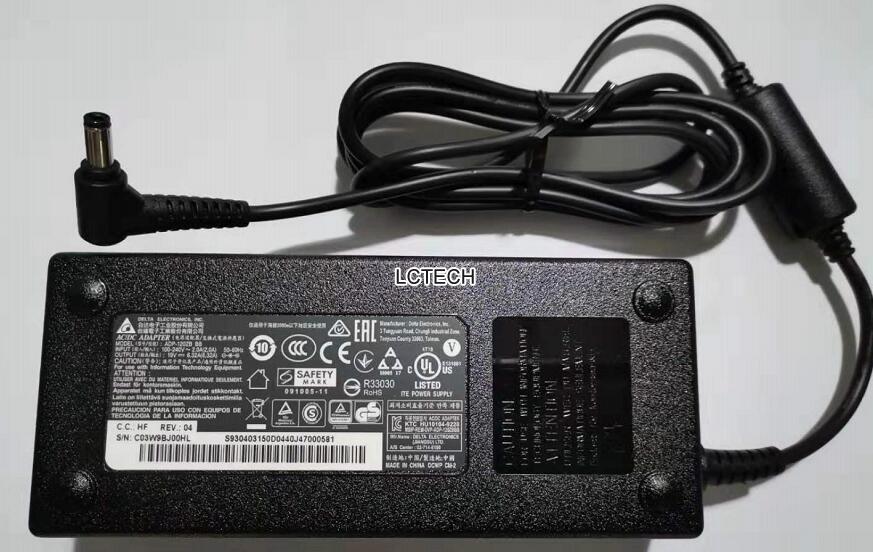

120W台达Delta ADP-120ZB



技术规格:

Input输入:

AC Socket输入接口: C6 梅花尾

Input range输入电压范围:90Vac~264Vac

Frequency频率:47Hz~63Hz

Input current输入电流:2A Max at 100Vac input voltage

Efficiency效率:The power supply efficiency shall be more than 86.5% measure at the    nominal voltagemaximum load,The AC input set at the normal voltage


Output输出

Output Power输出功率:120W

Output Volts/Amps输出电压/电流:19.0V/6.32A

Output ripple and noise输出纹波:350 mV peak to peak

DC Plug输出接口: 按照客户项目需求提供


Dimensions尺寸 (mm)

L160.0 x W76.20 x H25.4

ADP-120ZB BB
