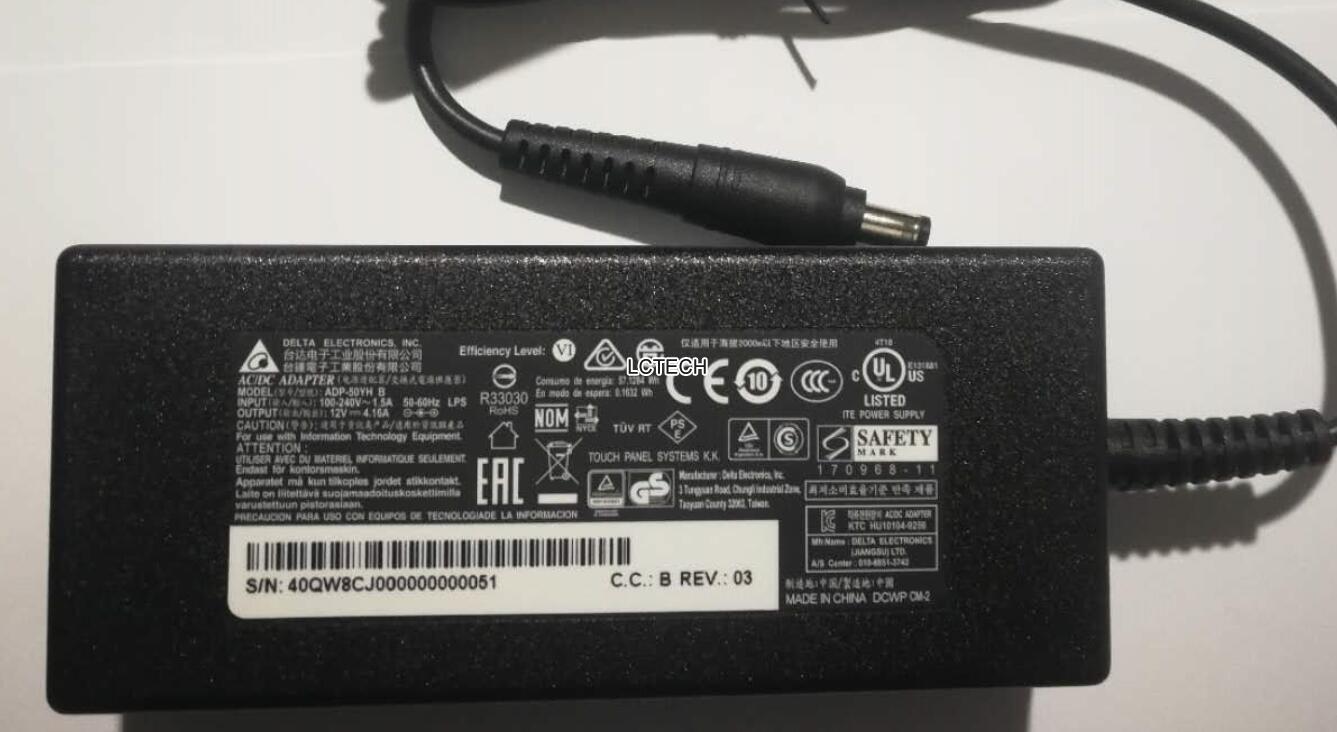

50W ADP-50YH

技术规格:

Input输入:

AC socket交流输入接口: C14 品字尾

Input range加流输入范围:90Vac~264Vac

Frequency频率:47Hz~63Hz

Input current输入电流:1.2A Max at 100Vac input voltage

Efficiency效率:83% Min. at nominal input voltage, maximum load and measured at the end of DC cable


Output输出

Output Power输出功率:50W

Output Volts/Amps输出电压/电流:12.0V/4.16A

Output ripple and noise输出纹波:300 mV peak to peak

DC plug输出接口: 按照客户项目需求提供


Dimensions尺寸 (mm)

L120.0 x W52.5 x H32.5

ADP-50YH
